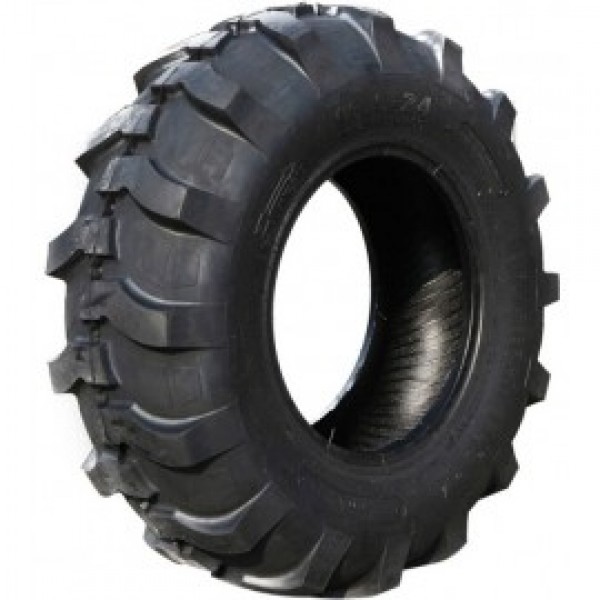

VROTR R-4 16.9-28 12PR TL — Agricultural & Industrial Drive Tire

The VROTR R-4  16.9-28 12PR TL tire delivers high-traction performance for tractors, loaders, and agricultural machinery. Its 12-ply bias construction, R-1 tread, and durable rubber compound provide excellent grip, stability, and long service life across farm and industrial terrains.

Sale

496.26$ 729.12$ Inc. VAT

20 in stock (can be backordered)
EAN: 3040000257025
SKU 2060417521954
Tyre brand: VROTR
Tyre model: R-4
Season: All Season
Car Type: 16.9-28 12PR TL
SUV Type: MT (Mud Terrain)
Specification: 16.9-28 12PR TL
Load Index: 149 (3250 kg)
Speed Index: A8 ()
Brand:
20 in stock (can be backordered)
wws Support Desk I Autowheels / Pre-sale Questions Need Help? Contact Us via WhatsApp
Add to wishlist Add to compare

Description

The VROTR R-4 16.9-28 12PR TL is a high-traction, heavy-duty tire engineered for agricultural tractors, backhoe loaders, and light construction machinery. Built with a reinforced 12-ply carcass, the tire offers exceptional load-bearing capacity, puncture resistance, and stability across both field and industrial surfaces.

With a deep R-1 / R-4 hybrid tread design, it delivers superior traction in mud, soil, or gravel while maintaining even wear on paved ground. The self-cleaning lug geometry ensures continuous grip in variable terrain, making it a reliable fit for tractors, harvesters, loaders, and industrial handlers across diverse East African and global environments.

Technical Specifications: VROTR R-4 16.9-28 12PR TL
Parameter Specification
Brand VROTR
Model 16.9-28 R-1 / R-4 Hybrid
Type Agricultural & Industrial Drive Tire
Construction Bias (Cross-ply)
Ply Rating 12 PR
Tube Type Tubeless (TL)
Tread Pattern R-1 / R-4 Hybrid Lug
Load Index / Speed Rating 149A8 / 149B
Max Load Capacity 3,250 kg (7,170 lb) @ 40 km/h
Inflation Pressure 200 kPa / 29 psi
Overall Diameter 1,460 mm (57.5 in)
Section Width 430 mm (16.9 in)
Rim Recommended W14A / DW15L
Tread Depth 47 mm (1.85 in)
Weight (Approx.) 78–85 kg (varies by batch)
Tread Compound High-grade synthetic rubber with anti-heat, anti-wear formulation
Applications Agricultural tractors, industrial loaders, backhoe rear tires, telehandlers
Surface Compatibility Clay soil, gravel, construction sites, compacted fields
Position Rear (Drive) / All-wheel industrial use
Key Performance Advantages: VROTR R-4 16.9-28 12PR TL
  • Reinforced 12PR casing for heavy load durability in demanding farm and construction conditions.

  • Dual-pattern tread (R-1 / R-4) optimized for traction and self-cleaning across mixed terrain.

  • Cut and chip-resistant rubber compound for longer service life in abrasive environments.

  • Optimized lug geometry ensures even ground contact and minimizes vibration on asphalt.

  • High flotation footprint protects soil structure and enhances stability on soft terrain.

  • Tubeless technology (TL) for reduced downtime and improved air retention.

  • Compatible with multi-brand OEM rims (W14A, DW15L) for easy retrofit installation.

Specification

Weight 85 kg
Dimensions 146 × 43 × 146 cm
Tyre Season All Season
Tyre Size 16.9-28 12PR TL
Load Index 149
Speed Index A8

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Q & A

Ask a question
There are no questions yet
Type Bias Ply
Brand R-4, VROTR
Make Model Year from Year to
John Deere 5055E 2000 2025
John Deere 5065E 2003 2025
John Deere 5075E 2008 2025
John Deere 5310 1998 2025
John Deere 5403 2001 2025
Massey Ferguson 385 1995 2025
Massey Ferguson 290 1990 2025
Massey Ferguson 375 1993 2025
Massey Ferguson 390 1998 2025
Massey Ferguson 4708 2014 2025
New Holland TT75 1998 2025
New Holland TD5.90 2013 2025
New Holland 5630 1994 2025
New Holland 6640 1995 2025
New Holland TL90 2000 2025
Case IH JX75T 2002 2025
Case IH Farmall 80 2007 2025
Case IH JX95 2005 2025
Kubota M9540 2005 2025
Kubota M7040 2008 2025
Kubota M8540 2009 2025
Kubota M108S 2011 2025
Mahindra 575 DI XP Plus 2005 2025
Mahindra Arjun Novo 2008 2025
Mahindra 605 DI 2003 2025
Mahindra 595 DI Turbo 2005 2025
Sonalika DI 750 III 2005 2025
Sonalika DI 60 RX 2010 2025
TAFE 5900 2005 2025
TAFE 8502 2008 2025
Escorts Powertrac Euro 60 2010 2025
Escorts Farmtrac 60 EPI Supermaxx 2012 2025
Yanmar EF514T 2010 2025
Yanmar YT5113 2018 2025
Valtra A93 2010 2025
Valtra A104 2013 2025
Valtra N93 2009 2025
JCB 3CX (Rear) 1998 2025
JCB 4CX (Rear) 2000 2025
Caterpillar (CAT) 416C (Rear) 1995 2025
Caterpillar (CAT) 420E (Rear) 2005 2025
Caterpillar (CAT) 422F (Rear) 2012 2025
Volvo BL60 (Rear) 2004 2025
Volvo BL71 (Rear) 2006 2025
Komatsu WB93R-5 (Rear) 2002 2025
Komatsu WB97R-8 (Rear) 2018 2025
Liugong CLG777A (Rear) 2012 2025
Liugong CLG888 (Rear) 2010 2025
XCMG WZ30-25 2015 2025
XCMG XT870 2017 2025
SDLG B877 (Rear) 2016 2025
Shantui SL30W (Rear) 2010 2025
Lovol 904 Tractor 2013 2025
Foton FT904 2011 2025
Dongfeng DF954 2012 2025
Zoomlion RV904 2018 2025
Weichai WM1004 2015 2025
Changfa CF954 2017 2025
YTO X904 2014 2025
Emerging Market OEMs Chinese/Indian Compact Tractors (Various) 2010 2025
Emerging Market OEMs Loader Backhoes (Regional Assemblers) 2010 2025
Emerging Market OEMs Industrial Loaders (Custom-Fit) 2015 2025
