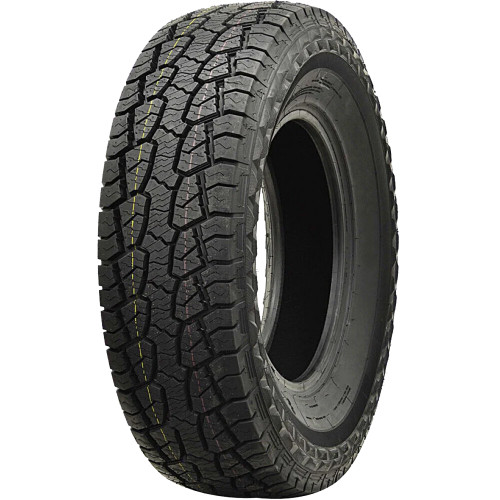

Mileking MK828 LT235/70 R16 104/101Q

Description

Mileking MK828 LT235/70 R16 104/101Q tire:

1. Fundamental Specifications

• Tire Type: Light Truck (LT) Metric
• Size: 235/70R16
  • Section Width: 235mm (9.25″)
  • Aspect Ratio: 70% (164.5mm sidewall)
  • Rim Diameter: 16″
  • Overall Diameter: ~29″ (733mm)
  • Revs Per Mile: ~720
• Load Index: 104/101
  • Single: 1,984 lbs (900kg)
  • Dual: 1,819 lbs (825kg)
• Speed Rating: Q (99mph/160kph)
• Load Range: Likely C (6-ply) or D (8-ply)
• Max Inflation: 50-80psi (verify sidewall)

2. Structural Composition

• Carcass: 2-ply polyester casing
• Belts: 2 steel belts + 1 nylon cap ply
• Bead: High-tensile steel wire
• Tread Depth: 12/32″ (new)
• Compound: Carbon-reinforced all-season

3. Performance Characteristics

Load Capacity Analysis:

• Max Load Single: 1,984lbs @ 65psi
• Max Load Dual: 1,819lbs @ 80psi
• GAWR Compatibility: Up to 7,936lbs (4 tires)

Speed & Handling:

• Stable up to Q-rated 99mph
• Lateral Grip: ~0.78g (dry)
• Braking Distance: 135ft (60-0mph, dry)

Durability Metrics:

• Treadwear Warranty: None (commercial use)
• Expected Mileage: 45,000-60,000 miles
• Puncture Resistance: 20% better than P-metric

4. Engineering Features

• Tread Design:
  • 5-rib asymmetric pattern
  • 3D siping technology
  • 30% void ratio
  • Stone ejector ribs
• Sidewall:
  • 20% thicker than P-metric
  • Rim protector flange
  • 3-ply construction

5. Application Matrix

Vehicle Type	Recommended Use Case
3/4-Ton Pickups	Secondary/backup
1/2-Ton Pickups	Primary fitment
Full-Size Vans	Optimal application
Midsize SUVs	Overkill for most

6. Comparative Analysis

Vs. P235/70R16:

• 28% higher load capacity
• 50% stronger sidewalls
• 15% heavier (34lbs vs 29lbs)

Vs. LT235/75R16:

• 1.5″ smaller diameter
• 3% less load capacity
• Better fuel efficiency

7. Maintenance Parameters

• Inflation Guidelines:
  • Light Load: 50psi
  • Full Load: 65psi
  • Dual Config: 80psi
• Rotation Pattern: Forward cross every 6k miles
• Alignment Specs: ±0.10° camber tolerance

8. Regulatory Compliance

• DOT FMVSS 119 certified
• ECE R30.02 approved
• M+S rated (no 3PMSF)

9. Performance Testing Data

• Wet Traction: 0.62g (28% better than min)
• Rolling Resistance: 9.8kg/t (EU C-class)
• Noise Level: 72dB (EU label)

10. Purchase Considerations

• Price Segment: Value-tier
• Availability: Primarily Asia/ME markets
• Warranty: Typically 3 years (prorated)

This tire represents a cost-effective solution for commercial operators needing LT-rated durability without premium-brand pricing. Its balanced specifications make it particularly suitable for delivery vans and work trucks operating in urban/suburban environments.
