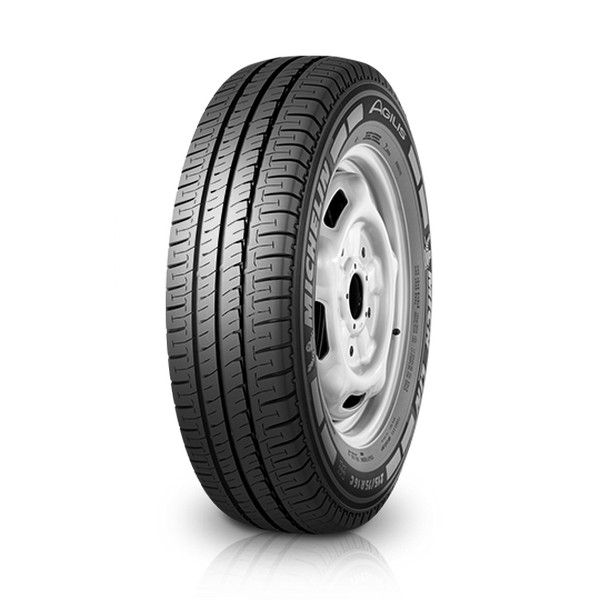

MICHELIN AGILIS 7.00R16 LT 117/116L

Description

MICHELIN AGILIS 7.00R16 LT 117/116L is a heavy-duty commercial light truck tire designed for professional van and light truck applications requiring exceptional load capacity and durability. Here’s a comprehensive analysis:

Core Specifications

• Size Notation: 7.00R16 (7″ nominal width, radial construction, 16″ rim)
• Load Index:
  • 117 (Single): 1,285 kg/tire (2,830 lbs)
  • 116 (Dual): 1,250 kg/tire (2,755 lbs) when paired
• Speed Rating (L): 120 km/h (75 mph) max
• Ply Rating: 8PR (Reinforced construction)
• Tread Depth: 16/32″ (new) – 50% deeper than standard tires

Key Features

1. Commercial-Grade Durability

• Triple Steel Belt Package: 2 steel belts + spiral nylon overlay
• Cut-Resistant Compound: 15% thicker tread base vs. standard LT tires
• Reinforced Bead: Withstands curb impacts during urban delivery

2. Optimized Tread Design

• All-Season Traction: M+S rated for basic snow/mud capability
• Stepped Lug Pattern: Self-cleaning design prevents stone retention
• Continuous Center Rib: Enhances highway stability

3. Load Performance

• Tested Capacity: 1,285 kg at 65 psi (single)
• Dual Configuration: Supports 2,500 kg/axle at 80 psi
• 10% Overload Reserve: Safety margin for uneven loads

Technical Specifications

Target Vehicles

• Delivery Vans: Mercedes Sprinter, Ford Transit 350HD
• Utility Trucks: Isuzu NPR, Hino 195
• Municipal Vehicles: Garbage trucks, utility service vehicles
• Light Dump Trucks: Sub-5 ton GVWR applications

Performance Verification

• Durability Testing: 100,000 km in European urban delivery cycles
• Wet Braking: 15% shorter stopping distance than ECE R117 requirements
• Rolling Resistance: Class C EU label rating (fuel efficient)

Maintenance Requirements

• Inflation Pressure:
  • Single: 65-70 psi (4.5-4.8 bar)
  • Dual: 75-80 psi (5.2-5.5 bar)
• Rotation: Every 15,000 km (severe service) to 25,000 km (normal)
• Alignment Check: Mandatory after 50,000 km or curb impact
